bcm_aaa.bcm_aaa_arc Architecture Reference

top module of BCM AAA design More...

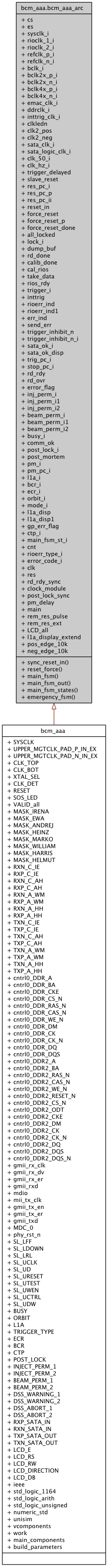

Inheritance diagram for bcm_aaa.bcm_aaa_arc:

Collaboration diagram for bcm_aaa.bcm_aaa_arc:

List of all members.

Processes

sync_reset_in ( sysclk_i )

global submodule reset, hold until main DCMs lock

reset_force ( clk_hz_i , slave_reset )

force reset after boot for proper initialization

main_fsm ( clk )

main control FSM

main_fsm_out ( clk )

main FSM output decoder

main_fsm_states ( clk )

Decoding main FSM states.

emergency_fsm ( sysclk_i , RESET )

Emergency FSM running on 100 MHz.

Signals

cs global_states

es err_states

sysclk_i std_logic := ' 0 '

rioclk_1_i std_logic := ' 0 '

rioclk_2_i std_logic := ' 0 '

refclk_p_i std_logic := ' 0 '

refclk_n_i std_logic := ' 0 '

bclk_i std_logic := ' 0 '

bclk2x_p_i std_logic := ' 0 '

bclk2x_n_i std_logic := ' 0 '

bclk4x_p_i std_logic := ' 0 '

bclk4x_n_i std_logic := ' 0 '

emac_clk_i std_logic := ' 0 '

ddrclk_i std_logic := ' 0 '

inttrig_clk_i std_logic := ' 0 '

clkledn std_logic := ' 0 '

clk2_pos std_logic := ' 0 '

clk2_neg std_logic := ' 0 '

sata_clk_i std_logic := ' 0 '

sata_logic_clk_i std_logic := ' 0 '

clk_50_i std_logic := ' 0 '

clk_hz_i std_logic := ' 0 '

trigger_delayed std_logic := ' 0 '

slave_reset std_logic := ' 0 '

res_pc_i std_logic := ' 0 '

res_pc_p std_logic := ' 0 '

res_pc_ii std_logic := ' 0 '

reset_in std_logic := ' 0 '

force_reset std_logic := ' 0 '

force_reset_p std_logic := ' 0 '

force_reset_done std_logic := ' 0 '

all_locked std_logic := ' 0 '

lock_i std_logic := ' 0 '

dump_buf std_logic := ' 0 '

rd_done std_logic := ' 0 '

calib_done std_logic := ' 0 '

cal_rios std_logic := ' 0 '

take_data std_logic := ' 0 '

rios_rdy std_logic := ' 0 '

trigger_i std_logic := ' 0 '

inttrig std_logic := ' 0 '

rioerr_ind std_logic := ' 0 '

rioerr_ind1 std_logic := ' 0 '

err_ind std_logic := ' 0 '

send_err std_logic := ' 0 '

trigger_inhibit_n std_logic := ' 0 '

trigger_inhibit_n_i std_logic := ' 0 '

sata_ok_i std_logic := ' 0 '

sata_ok_disp std_logic := ' 0 '

trig_pc_i std_logic := ' 0 '

stop_pc_i std_logic := ' 0 '

rd_rdy std_logic := ' 0 '

rd_ovr std_logic := ' 0 '

error_flag std_logic := ' 0 '

inj_perm_i std_logic := ' 0 '

inj_perm_i1 std_logic := ' 0 '

inj_perm_i2 std_logic := ' 0 '

beam_perm_i std_logic := ' 0 '

beam_perm_i1 std_logic := ' 0 '

beam_perm_i2 std_logic := ' 0 '

busy_i std_logic := ' 0 '

comm_ok std_logic := ' 0 '

post_lock_i std_logic := ' 0 '

post_mortem std_logic := ' 0 '

pm_i std_logic := ' 0 '

pm_pc_i std_logic := ' 0 '

l1a_i std_logic := ' 0 '

bcr_i std_logic := ' 0 '

ecr_i std_logic := ' 0 '

orbit_i std_logic := ' 0 '

mode_i std_logic := ' 0 '

l1a_disp std_logic := ' 0 '

l1a_disp1 std_logic := ' 0 '

gp_err_flag std_logic := ' 0 '

ctp_i std_logic_vector ( 9 downto 1 ) := ( others = > ' 0 ' )

main_fsm_st_i std_logic_vector ( 7 downto 0 ) := ( others = > ' 0 ' )

cnt std_logic_vector ( 9 downto 0 ) := ( others = > ' 0 ' )

rioerr_type_i std_logic_vector ( 7 downto 0 ) := ( others = > ' 0 ' )

error_code_i std_logic_vector ( 7 downto 0 ) := ( others = > ' 0 ' )

Component Instantiations

rd_rdy_sync edge <Entity edge>

clock_module clocks <Entity clocks>

post_lock_sync edge <Entity edge>

pm_delay pmdelay <Entity pmdelay>

hold of external post mortem for several orbits

main rio2mem <Entity rio2mem>

rem_res_pulse edge <Entity edge>

rem_res_ext extend_test <Entity extend_test>

LCD_all LCD <Entity LCD>

LCD.

l1a_display_extend extend_test <Entity extend_test>

Status LEDs.

pos_edge_10k edge <Entity edge>

neg_edge_10k edge <Entity edge>

Aliases

clk refclk_p_i

res slave_reset

Detailed Description

top module of BCM AAA design

This architecture contains the main control FSM as well as an emergency FSM running on 100 MHz in case the external PLL fails. Also the clock-distribution module, the LCD controller & the rio2mem-module containing the major modules of the design are instantiated

Definition at line 264 of file bcm_aaa.vhd.

Member Function Documentation

[Process]

emergency_fsm		( sysclk_i ,
		RESET )

Emergency FSM running on 100 MHz.

purpose: emergency FSM that should run at all times, even if external PLL fails. depends on 100 MHz Oscillator on ML410, if this one goes missing we're fucked :-)
type : sequential
inputs : sysclk
outputs:

Definition at line 595 of file bcm_aaa.vhd.

00595   emergency_fsm : process (sysclk_i, RESET)
00596   begin  -- process emergency_fsm
00597     if RESET = '1' then                 -- asynchronous reset (active high)
00598       es <= err_no;
00599     elsif sysclk_i'event and sysclk_i = '1' then  -- rising clock edge
00600       case es is
00601         when err_no =>
00602           if CLK_DET = '0' then
00603             es <= err_yes;
00604           else
00605             es <= err_no;
00606           end if;
00607         when err_yes =>
00608           null;
00609         when others =>
00610           es <= err_yes;
00611       end case;
00612     end if;
00613   end process emergency_fsm;

[Process]

main_fsm ( clk )

main control FSM

Global control FSM. Defines the current state of operation of the whole FPGA. First there's a start-up phase, and then in error-free operation either data taking or buffer dump mode. Only operational with external PLL.

Definition at line 411 of file bcm_aaa.vhd.

00411   main_fsm : process(clk)
00412   begin
00413     if clk'event and clk = '1' then
00414       if res = '1' then
00415         cs <= g_reset;
00416       else
00417         case cs is
00418
00419           when g_reset =>
00420             cs <= g_idle;
00421
00422           when g_idle =>                --* wait a bit after reset
00423             cnt <= cnt + 1;
00424             if cnt = "0000011111" then
00425               if kIgnoreRioCal = true then
00426                 cs <= g_capture;
00427               else
00428                 cs <= g_waitriostartup;
00429               end if;
00430               cnt <= (others => '0');
00431             else
00432               cs <= g_idle;
00433             end if;
00434
00435           when g_waitriostartup =>      --* wait for RIOs to lock
00436             if rios_rdy = '1' then
00437               cs <= g_calib;
00438             else
00439               cs <= g_waitriostartup;
00440             end if;
00441
00442           when g_calib =>  --* wait for RIOs to get ready for valid data taking
00443             if calib_done = '1' then    --and sata_ok_i = '1' then
00444               cs <= g_capture;
00445             else
00446               cs <= g_calib;
00447             end if;
00448
00449           when g_capture =>
00450             if err_ind = '1' then
00451               cs <= g_error;
00452             elsif pm_i = '1' then
00453               cs <= g_freeze;
00454             elsif trig_pc_i = '1' then
00455               cs <= g_read;
00456             else
00457               cs <= g_capture;
00458             end if;
00459
00460           when g_freeze =>
00461             if err_ind = '1' then
00462               cs <= g_error;
00463             elsif trig_pc_i = '1' then
00464               cs <= g_read;
00465             else
00466               cs <= g_freeze;
00467             end if;
00468
00469           when g_read =>                --* dump buffers to PC
00470             if err_ind = '1' then
00471               cs <= g_error;
00472             elsif rd_done = '1' or stop_pc_i = '1' then
00473               cs <= g_armed;
00474             else
00475               cs <= g_read;
00476             end if;
00477
00478           when g_armed =>
00479             if err_ind = '1' then
00480               cs <= g_error;
00481             else
00482               cs <= g_capture;
00483             end if;
00484
00485           when g_error =>
00486             cs <= g_error;
00487
00488           when others =>
00489             cs <= g_error;
00490
00491         end case;
00492       end if;
00493     end if;
00494   end process main_fsm;

[Process]

main_fsm_out ( clk )

main FSM output decoder

Sets signals for controlling all the submodules according to the current state of the main FSM.

Definition at line 505 of file bcm_aaa.vhd.

00505   main_fsm_out : process(clk)
00506   begin
00507     if clk'event and clk = '1' then
00508       if res = '1' then
00509         cal_rios     <= '0';
00510         take_data    <= '0';
00511         dump_buf     <= '0';
00512         rd_rdy       <= '0';
00513         rd_ovr       <= '0';
00514         send_err     <= '0';
00515         error_code_i <= (others => '0');
00516       else
00517         cal_rios  <= '0';
00518         take_data <= '0';
00519         dump_buf  <= '0';
00520         rd_rdy    <= '0';
00521         rd_ovr    <= '0';
00522         send_err  <= '0';
00523
00524         case cs is
00525
00526           when g_reset =>
00527             null;
00528           when g_waitriostartup =>
00529             null;
00530           when g_calib =>
00531             cal_rios <= '1';
00532           when g_idle =>
00533             null;
00534           when g_capture =>
00535             take_data <= '1';
00536           when g_freeze =>
00537             rd_rdy    <= '1';
00538             take_data <= '0';
00539             dump_buf  <= '0';
00540           when g_read =>
00541             dump_buf <= '1';
00542           when g_armed =>
00543             rd_ovr   <= '1';
00544             dump_buf <= '0';
00545           when g_error =>
00546             if kErr_Msg_En = true then  --* mask sending of err msg
00547               send_err <= '1';
00548             end if;
00549             --* decode different errors
00550             if rioerr_ind1 = '1' then
00551               error_code_i <= "00000001";
00552             end if;
00553           when others =>
00554             null;
00555         end case;
00556       end if;
00557     end if;
00558   end process main_fsm_out;

[Process]

main_fsm_states ( clk )

Decoding main FSM states.

This process decodes the states of the main FSM for the DCS status messages using a 6-bit Gray code.

Definition at line 567 of file bcm_aaa.vhd.

00567   main_fsm_states : process (clk)
00568   begin  -- process main_fsm_states
00569     if clk'event and clk = '1' then     -- rising clock edge
00570       case cs is
00571         when g_waitriostartup => main_fsm_st_i <= "00000001";
00572         when g_calib          => main_fsm_st_i <= "00000011";
00573         when g_idle           => main_fsm_st_i <= "00000010";
00574         when g_capture        => main_fsm_st_i <= "00000110";
00575         when g_reset          => main_fsm_st_i <= "00000111";
00576         when g_read           => main_fsm_st_i <= "00000101";
00577         when g_error          => main_fsm_st_i <= "00000100";
00578         when g_freeze         => main_fsm_st_i <= "00001100";
00579         when g_armed          => main_fsm_st_i <= "00001101";
00580         when others           => main_fsm_st_i <= (others => '0');
00581       end case;
00582     end if;
00583   end process main_fsm_states;

[Process]

reset_force		( clk_hz_i ,
		slave_reset )

force reset after boot for proper initialization

Definition at line 372 of file bcm_aaa.vhd.

00372   reset_force : process (clk_hz_i, slave_reset)
00373     variable cnt : integer range 0 to 7 := 0;
00374   begin  -- process reset_force
00375     if slave_reset = '1' then           -- asynchronous reset (active high)
00376       force_reset <= '0';
00377 --      force_reset_done <= '0';
00378       cnt         := 0;
00379     elsif clk_hz_i'event and clk_hz_i = '1' then  -- rising clock edge
00380       if force_reset_done = '0' then
00381         cnt := cnt + 1;
00382         if cnt = 1 then
00383           force_reset      <= '1';
00384           force_reset_done <= '1';
00385         end if;
00386       else
00387         force_reset <= '0';
00388         cnt         := cnt;
00389       end if;
00390     end if;
00391   end process reset_force;

[Process]

sync_reset_in ( sysclk_i )

global submodule reset, hold until main DCMs lock

Definition at line 360 of file bcm_aaa.vhd.

00360   sync_reset_in : process(sysclk_i)
00361   begin
00362     if sysclk_i'event and sysclk_i = '1' then
00363       if reset_in = '1' or all_locked = '0' then
00364         slave_reset <= '1';
00365       else
00366         slave_reset <= '0';
00367       end if;
00368     end if;
00369   end process sync_reset_in;

Member Data Documentation

clock_module clocks [Component Instantiation]

main clock distribution module

Definition at line 618 of file bcm_aaa.vhd.

l1a_display_extend extend_test [Component Instantiation]

Status LEDs.

extend L1A for LED

Definition at line 884 of file bcm_aaa.vhd.

LCD_all LCD [Component Instantiation]

LCD.

LCD controller

Definition at line 865 of file bcm_aaa.vhd.

main rio2mem [Component Instantiation]

main module containing all the major design parts

Definition at line 676 of file bcm_aaa.vhd.

pm_delay pmdelay [Component Instantiation]

hold of external post mortem for several orbits

Definition at line 663 of file bcm_aaa.vhd.

post_lock_sync edge [Component Instantiation]

sync of POST_LOCK

Definition at line 653 of file bcm_aaa.vhd.

rd_rdy_sync edge [Component Instantiation]

pulse internal boot-up reset

Definition at line 394 of file bcm_aaa.vhd.

The documentation for this class was generated from the following file:

bcm_aaa.vhd


Processes
sync_reset_in	( sysclk_i )
	global submodule reset, hold until main DCMs lock
reset_force	( clk_hz_i , slave_reset )
	force reset after boot for proper initialization
main_fsm	( clk )
	main control FSM
main_fsm_out	( clk )
	main FSM output decoder
main_fsm_states	( clk )
	Decoding main FSM states.
emergency_fsm	( sysclk_i , RESET )
	Emergency FSM running on 100 MHz.
Signals
cs	global_states
es	err_states
sysclk_i	std_logic := ' 0 '
rioclk_1_i	std_logic := ' 0 '
rioclk_2_i	std_logic := ' 0 '
refclk_p_i	std_logic := ' 0 '
refclk_n_i	std_logic := ' 0 '
bclk_i	std_logic := ' 0 '
bclk2x_p_i	std_logic := ' 0 '
bclk2x_n_i	std_logic := ' 0 '
bclk4x_p_i	std_logic := ' 0 '
bclk4x_n_i	std_logic := ' 0 '
emac_clk_i	std_logic := ' 0 '
ddrclk_i	std_logic := ' 0 '
inttrig_clk_i	std_logic := ' 0 '
clkledn	std_logic := ' 0 '
clk2_pos	std_logic := ' 0 '
clk2_neg	std_logic := ' 0 '
sata_clk_i	std_logic := ' 0 '
sata_logic_clk_i	std_logic := ' 0 '
clk_50_i	std_logic := ' 0 '
clk_hz_i	std_logic := ' 0 '
trigger_delayed	std_logic := ' 0 '
slave_reset	std_logic := ' 0 '
res_pc_i	std_logic := ' 0 '
res_pc_p	std_logic := ' 0 '
res_pc_ii	std_logic := ' 0 '
reset_in	std_logic := ' 0 '
force_reset	std_logic := ' 0 '
force_reset_p	std_logic := ' 0 '
force_reset_done	std_logic := ' 0 '
all_locked	std_logic := ' 0 '
lock_i	std_logic := ' 0 '
dump_buf	std_logic := ' 0 '
rd_done	std_logic := ' 0 '
calib_done	std_logic := ' 0 '
cal_rios	std_logic := ' 0 '
take_data	std_logic := ' 0 '
rios_rdy	std_logic := ' 0 '
trigger_i	std_logic := ' 0 '
inttrig	std_logic := ' 0 '
rioerr_ind	std_logic := ' 0 '
rioerr_ind1	std_logic := ' 0 '
err_ind	std_logic := ' 0 '
send_err	std_logic := ' 0 '
trigger_inhibit_n	std_logic := ' 0 '
trigger_inhibit_n_i	std_logic := ' 0 '
sata_ok_i	std_logic := ' 0 '
sata_ok_disp	std_logic := ' 0 '
trig_pc_i	std_logic := ' 0 '
stop_pc_i	std_logic := ' 0 '
rd_rdy	std_logic := ' 0 '
rd_ovr	std_logic := ' 0 '
error_flag	std_logic := ' 0 '
inj_perm_i	std_logic := ' 0 '
inj_perm_i1	std_logic := ' 0 '
inj_perm_i2	std_logic := ' 0 '
beam_perm_i	std_logic := ' 0 '
beam_perm_i1	std_logic := ' 0 '
beam_perm_i2	std_logic := ' 0 '
busy_i	std_logic := ' 0 '
comm_ok	std_logic := ' 0 '
post_lock_i	std_logic := ' 0 '
post_mortem	std_logic := ' 0 '
pm_i	std_logic := ' 0 '
pm_pc_i	std_logic := ' 0 '
l1a_i	std_logic := ' 0 '
bcr_i	std_logic := ' 0 '
ecr_i	std_logic := ' 0 '
orbit_i	std_logic := ' 0 '
mode_i	std_logic := ' 0 '
l1a_disp	std_logic := ' 0 '
l1a_disp1	std_logic := ' 0 '
gp_err_flag	std_logic := ' 0 '
ctp_i	std_logic_vector ( 9 downto 1 ) := ( others = > ' 0 ' )
main_fsm_st_i	std_logic_vector ( 7 downto 0 ) := ( others = > ' 0 ' )
cnt	std_logic_vector ( 9 downto 0 ) := ( others = > ' 0 ' )
rioerr_type_i	std_logic_vector ( 7 downto 0 ) := ( others = > ' 0 ' )
error_code_i	std_logic_vector ( 7 downto 0 ) := ( others = > ' 0 ' )
Component Instantiations
rd_rdy_sync	edge <Entity edge>
clock_module	clocks <Entity clocks>
post_lock_sync	edge <Entity edge>
pm_delay	pmdelay <Entity pmdelay>
	hold of external post mortem for several orbits
main	rio2mem <Entity rio2mem>
rem_res_pulse	edge <Entity edge>
rem_res_ext	extend_test <Entity extend_test>
LCD_all	LCD <Entity LCD>
	LCD.
l1a_display_extend	extend_test <Entity extend_test>
	Status LEDs.
pos_edge_10k	edge <Entity edge>
neg_edge_10k	edge <Entity edge>
Aliases
clk	refclk_p_i
res	slave_reset
