pmdelay Entity Reference
Variable Post-Mortem layoff - orbit delay. More...
Inheritance diagram for pmdelay:

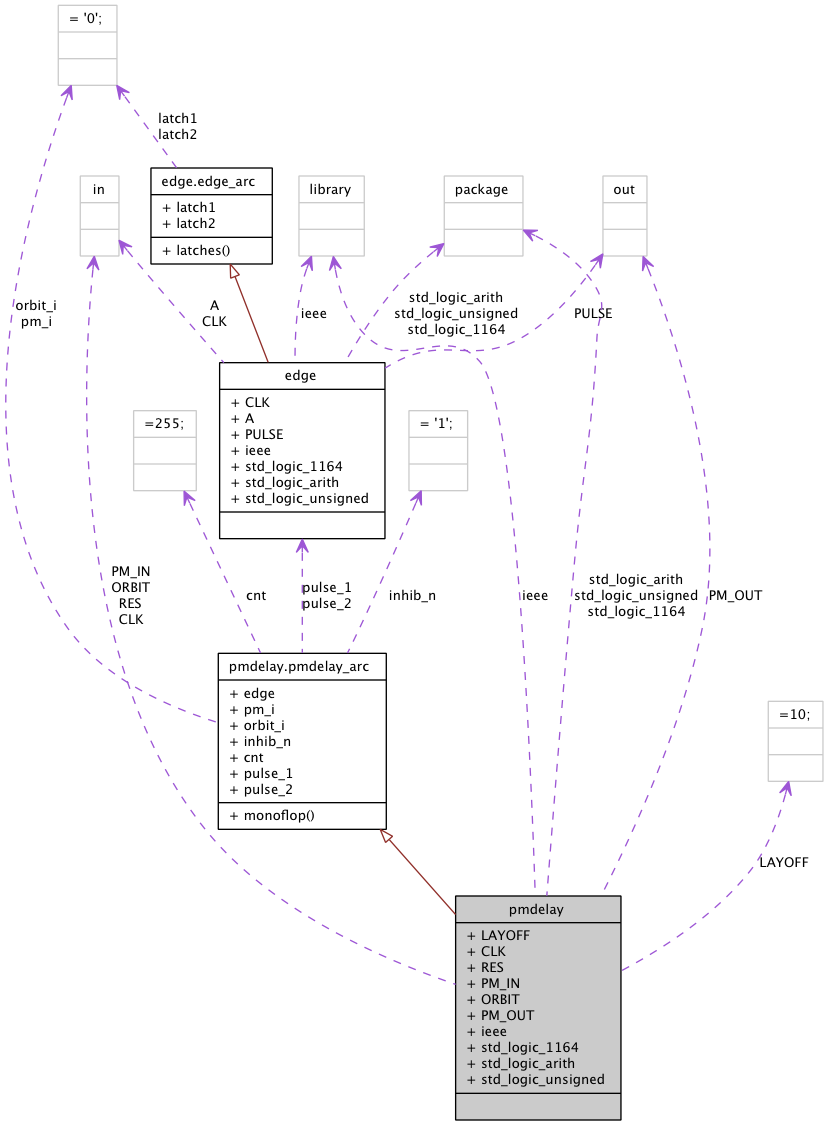

Collaboration diagram for pmdelay:
Architectures | |
| pmdelay_arc | Architecture |
| Variable Post-Mortem layoff - orbit delay. More... | |
Libraries | |
| ieee | |
| standard IEEE library | |
Packages | |
| std_logic_1164 | |
| std_logic definitions, see file | |
| std_logic_arith | |
| arithmetic operations on std_logic datatypes, see file | |
| std_logic_unsigned | |
| unsigned functions use ieee.std_logic_unsigned.all; operators for std_logic_vector type, see file | |
Generics | |
| LAYOFF | integer range 0 to 254 := 10 |
| number of orbits to wait | |
Ports | |
| CLK | in std_logic |
| clock | |
| RES | in std_logic |
| reset | |
| PM_IN | in std_logic |
| post mortem in | |
| ORBIT | in std_logic |
| orbit | |
| PM_OUT | out std_logic |
| post mortem out | |
Detailed Description
Variable Post-Mortem layoff - orbit delay.This entity delays the Post Mortem trigger signal for a number of Orbits, specified at compile-time via a generic. While a Post Mortem is pending, all further input pulses are ignored.
Definition at line 37 of file pmdelay.vhd.
Member Data Documentation
CLK in std_logic [Port] |
ieee library [Library] |
LAYOFF integer range 0 to 254 := 10 [Generic] |
ORBIT in std_logic [Port] |
PM_IN in std_logic [Port] |
PM_OUT out std_logic [Port] |
RES in std_logic [Port] |
std_logic_1164 package [Package] |
std_logic definitions, see file
Reimplemented in main_components.
Definition at line 27 of file pmdelay.vhd.
std_logic_arith package [Package] |
std_logic_unsigned package [Package] |
unsigned functions use ieee.std_logic_unsigned.all; operators for std_logic_vector type, see file
Definition at line 31 of file pmdelay.vhd.
The documentation for this class was generated from the following file:
