raw_data_emul.raw_data_emul_arc Architecture Reference
Pattern generator to fill raw data buffers. More...
Inheritance diagram for raw_data_emul.raw_data_emul_arc:

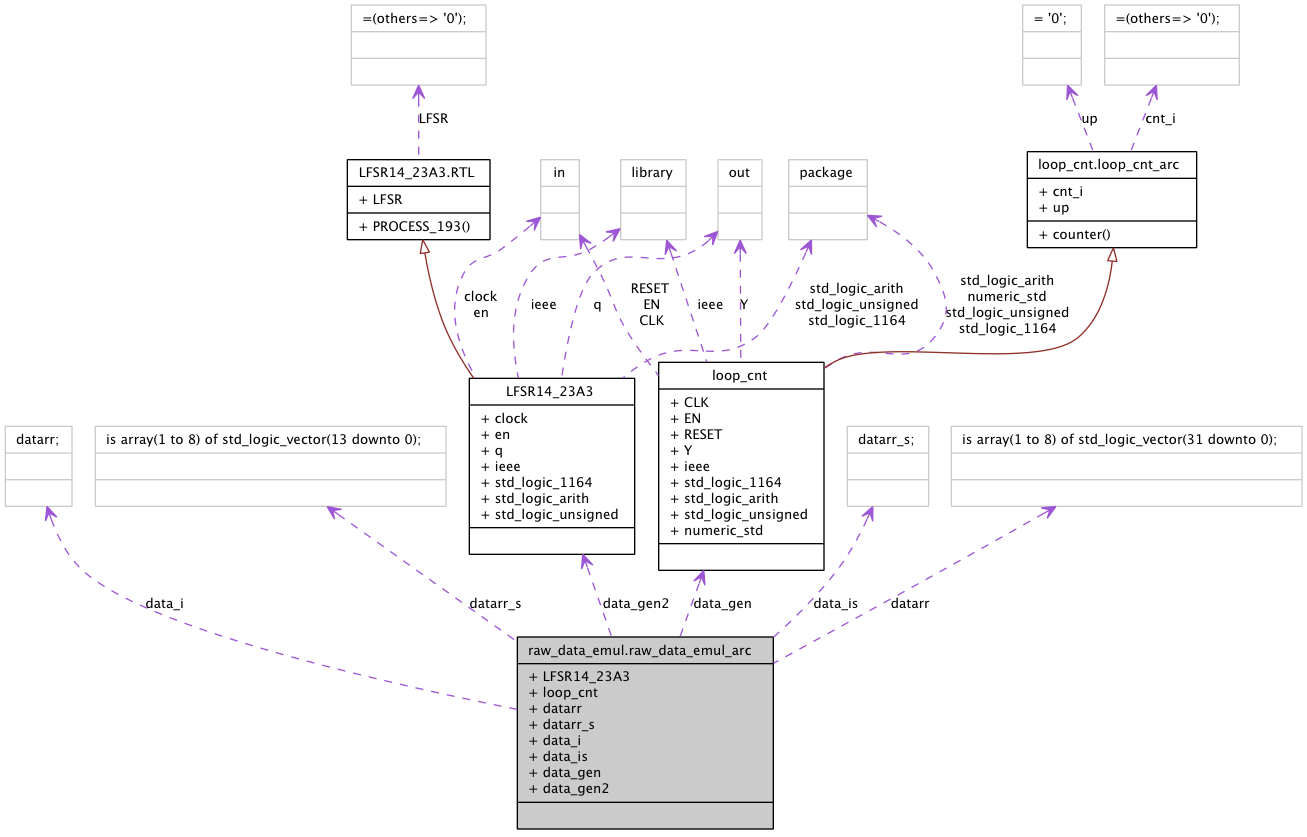

Collaboration diagram for raw_data_emul.raw_data_emul_arc:
Components | |
| LFSR14_23A3 | <Entity LFSR14_23A3> |
| LFSR. | |
| loop_cnt | <Entity loop_cnt> |
| Continous Counter. | |
Types | |
| datarr | array ( 1 to 8 ) of std_logic_vector ( 31 downto 0 ) |
| datarr_s | array ( 1 to 8 ) of std_logic_vector ( 13 downto 0 ) |
Signals | |
| data_i | datarr |
| data_is | datarr_s |
Component Instantiations | |
| data_gen | loop_cnt <Entity loop_cnt> |
| data_gen2 | LFSR14_23A3 <Entity LFSR14_23A3> |
Detailed Description
Pattern generator to fill raw data buffers.Fill raw data buffers with fixed patterns, generated with LFSRs and continously looping counters.
Definition at line 61 of file raw_data_emul.vhd.
Member Data Documentation
LFSR14_23A3 [Component] |
loop_cnt [Component] |
The documentation for this class was generated from the following file:
