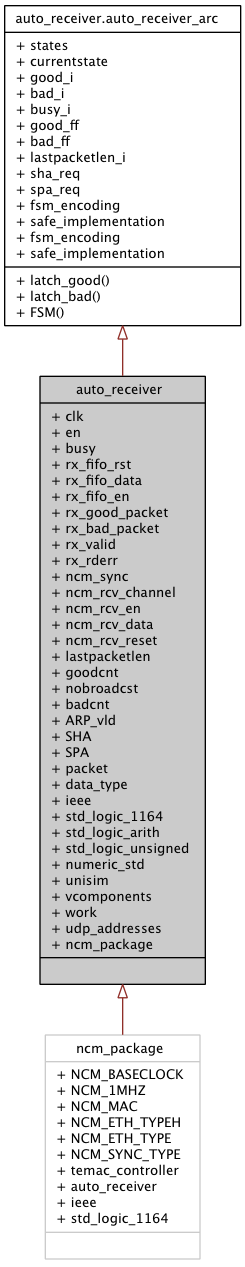

auto_receiver Entity Reference
receives packets from EMAC & decodes packets
More...
List of all members.
|
Architectures |
| auto_receiver_arc | Architecture |
| | receives packets from EMAC & decodes packets More...
|
Libraries |
| ieee | |
| | standard IEEE library
|
| unisim | |
| | Library with Xilinx primitives.
|
|
work | |
Packages |
| std_logic_1164 | |
| | std_logic definitions, see file
|
| std_logic_arith | |
| | arithmetic operations on std_logic datatypes, see file
|
| std_logic_unsigned | |
| | unsigned functions use ieee.std_logic_unsigned.all; operators for std_logic_vector type, see file
|
| numeric_std | |
| | arithmetic functions use ieee.numeric_std.all; operators for signed use ieee.numeric_std.all; unsigned datatypes, see file
|
| vcomponents | |
| | Header with Xilinx primitives.
|
|
udp_addresses | Package <udp_addresses> |
|
ncm_package | Package <ncm_package> |
Ports |
| clk | in |
| | Clock.
|
| en | in |
| | enable receiver (NCM)
|
| busy | out |
| | we are just receiving one packet
|
| rx_fifo_rst | out |
| | FIFO reset.
|
| rx_fifo_data | in ( 7 downto 0 ) |
| | data from FIFO
|
| rx_fifo_en | out |
| | FIFO read enable.
|
| rx_good_packet | in |
| | start packet reception
|
| rx_bad_packet | in |
| | start packet reception
|
| rx_valid | in |
| | end packet reception
|
| rx_rderr | in |
| | rcv fifo read error - we are too fast (should not happen anyway)
|
| ncm_sync | out |
| | ncm interface to rcv_fifo, unused
|
| ncm_rcv_channel | out ( 3 downto 0 ) |
| | ncm interface to rcv_fifo, unused
|
| ncm_rcv_en | out |
| | ncm interface to rcv_fifo, unused
|
| ncm_rcv_data | out ( 7 downto 0 ) |
| | ncm interface to rcv_fifo, unused
|
| ncm_rcv_reset | out |
| | ncm interface to rcv_fifo, unused
|
| lastpacketlen | out ( 15 downto 0 ) |
| | statistics interface, unused
|
| goodcnt | out ( 31 downto 0 ) |
| | statistics interface, unused
|
| nobroadcst | out ( 15 downto 0 ) |
| | statistics interface, unused
|
| badcnt | out ( 31 downto 0 ) |
| | statistics interface, unused
|
| ARP_vld | out |
| | ARP request flag.
|
| SHA | out ( 47 downto 0 ) |
| | ARP SHA.
|
| SPA | out ( 31 downto 0 ) |
| | ARP SPA.
|
| packet | out ( 19 downto 0 ) |
| | RX packet-nr.
|
| data_type | out ( 11 downto 0 ) |
| | RX packet type.
|
Detailed Description
receives packets from EMAC & decodes packets
en is used to turn on/off receivers; receive channels are reset automatically;
Definition at line 67 of file auto_receiver.vhd.
Member Data Documentation
badcnt out ( 31 downto 0 ) [Port] |
arithmetic functions use ieee.numeric_std.all; operators for signed use ieee.numeric_std.all; unsigned datatypes, see file
Definition at line 54 of file auto_receiver.vhd.
packet out ( 19 downto 0 ) [Port] |
rcv fifo read error - we are too fast (should not happen anyway)
Definition at line 78 of file auto_receiver.vhd.
SHA out ( 47 downto 0 ) [Port] |
SPA out ( 31 downto 0 ) [Port] |
unsigned functions use ieee.std_logic_unsigned.all; operators for std_logic_vector type, see file
Definition at line 52 of file auto_receiver.vhd.
