ddr2_mem_tap_ctrl.arch Architecture Reference

Tap control logic. More...

Inheritance diagram for ddr2_mem_tap_ctrl.arch:

[legend]

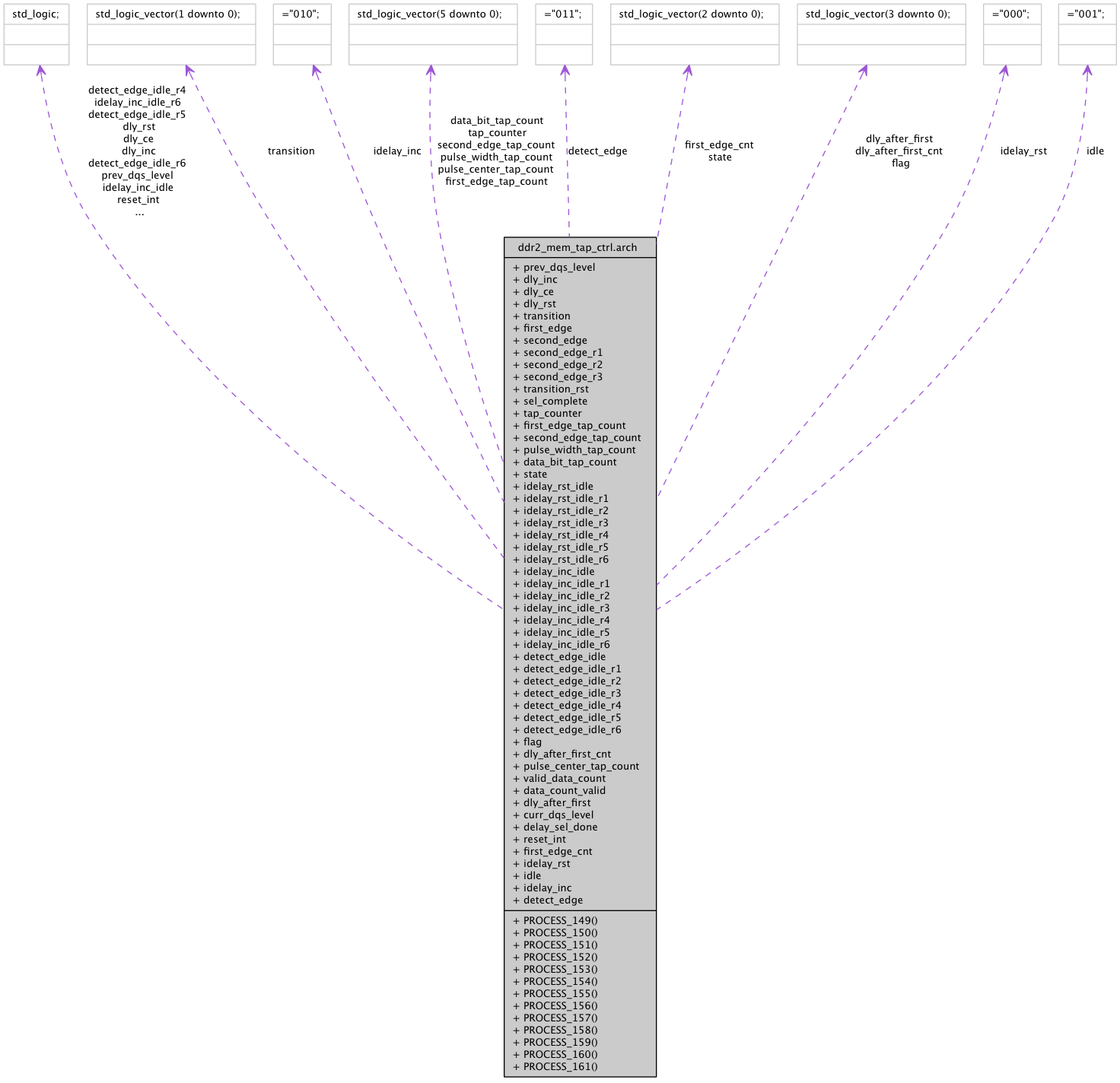

Collaboration diagram for ddr2_mem_tap_ctrl.arch:

[legend]

List of all members.

Processes
PROCESS_149	( CAL_CLK )
	Shift registers for controls.
PROCESS_150	( CAL_CLK )
	Tap Delay Selection Complete for Data bus associated with a DQS.
PROCESS_151	( CAL_CLK )
	Start detection of second transition only after 10 taps from first transition.
PROCESS_152	( CAL_CLK )
	Tap Counter.
PROCESS_153	( CAL_CLK )
	Tap value for Data IDELAY circuit.
PROCESS_154	( CAL_CLK )
	Tap counter.
PROCESS_155	( CAL_CLK )
	Tap counter.
PROCESS_156	( CAL_CLK )
	Tap counter.
PROCESS_157	( CAL_CLK )
	Edge count.
PROCESS_158	( CAL_CLK )
PROCESS_159	( CAL_CLK )
	First and second edge assignment logic.
PROCESS_160	( CAL_CLK )
	Reset logic.
PROCESS_161	( CAL_CLK )
	State Machine for edge detection and midpoint determination.
Constants
idelay_rst	std_logic_vector ( 2 downto 0 ) := " 000 "
	FSM enum.
idle	std_logic_vector ( 2 downto 0 ) := " 001 "
	FSM enum.
idelay_inc	std_logic_vector ( 2 downto 0 ) := " 010 "
	FSM enum.
detect_edge	std_logic_vector ( 2 downto 0 ) := " 011 "
	FSM enum.
Signals
prev_dqs_level	std_logic
dly_inc	std_logic
dly_ce	std_logic
dly_rst	std_logic
transition	std_logic_vector ( 1 downto 0 )
first_edge	std_logic
second_edge	std_logic
second_edge_r1	std_logic
second_edge_r2	std_logic
second_edge_r3	std_logic
transition_rst	std_logic
sel_complete	std_logic
tap_counter	std_logic_vector ( 5 downto 0 )
first_edge_tap_count	std_logic_vector ( 5 downto 0 )
second_edge_tap_count	std_logic_vector ( 5 downto 0 )
pulse_width_tap_count	std_logic_vector ( 5 downto 0 )
data_bit_tap_count	std_logic_vector ( 5 downto 0 )
state	std_logic_vector ( 2 downto 0 )
idelay_rst_idle	std_logic
idelay_rst_idle_r1	std_logic
idelay_rst_idle_r2	std_logic
idelay_rst_idle_r3	std_logic
idelay_rst_idle_r4	std_logic
idelay_rst_idle_r5	std_logic
idelay_rst_idle_r6	std_logic
idelay_inc_idle	std_logic
idelay_inc_idle_r1	std_logic
idelay_inc_idle_r2	std_logic
idelay_inc_idle_r3	std_logic
idelay_inc_idle_r4	std_logic
idelay_inc_idle_r5	std_logic
idelay_inc_idle_r6	std_logic
detect_edge_idle	std_logic
detect_edge_idle_r1	std_logic
detect_edge_idle_r2	std_logic
detect_edge_idle_r3	std_logic
detect_edge_idle_r4	std_logic
detect_edge_idle_r5	std_logic
detect_edge_idle_r6	std_logic
flag	std_logic_vector ( 3 downto 0 )
dly_after_first_cnt	std_logic_vector ( 3 downto 0 )
pulse_center_tap_count	std_logic_vector ( 5 downto 0 )
valid_data_count	std_logic
data_count_valid	std_logic
dly_after_first	std_logic_vector ( 3 downto 0 )
curr_dqs_level	std_logic
delay_sel_done	std_logic
reset_int	std_logic
first_edge_cnt	std_logic_vector ( 2 downto 0 )

---

Detailed Description

Tap control logic.

The tap control logic which claculates the relation between the FPGA clock and the dqs from memory. It delays the dqs so as to detect the edges of the dqs and then calculates the mid point so that the data can be registered properly.

Definition at line 78 of file ddr2_mem_tap_ctrl.vhd.

---

Member Function Documentation

[Process]

PROCESS_149

( CAL_CLK )

Shift registers for controls.

Definition at line 158 of file ddr2_mem_tap_ctrl.vhd.

  process(CAL_CLK)
  begin
    if CAL_CLK'event and CAL_CLK = '1' then
      if reset_int = '1' then
        second_edge_r1      <= '0';
        second_edge_r2      <= '0';
        second_edge_r3      <= '0';
        idelay_rst_idle_r1  <= '0';
        idelay_rst_idle_r2  <= '0';
        idelay_rst_idle_r3  <= '0';
        idelay_rst_idle_r4  <= '0';
        idelay_rst_idle_r5  <= '0';
        idelay_rst_idle_r6  <= '0';
        idelay_inc_idle_r1  <= '0';
        idelay_inc_idle_r2  <= '0';
        idelay_inc_idle_r3  <= '0';
        idelay_inc_idle_r4  <= '0';
        idelay_inc_idle_r5  <= '0';
        idelay_inc_idle_r6  <= '0';
        detect_edge_idle_r1 <= '0';
        detect_edge_idle_r2 <= '0';
        detect_edge_idle_r3 <= '0';
        detect_edge_idle_r4 <= '0';
        detect_edge_idle_r5 <= '0';
        detect_edge_idle_r6 <= '0';
        valid_data_count    <= '0';
      else
        second_edge_r1      <= second_edge;
        second_edge_r2      <= second_edge_r1;
        second_edge_r3      <= second_edge_r2;
        idelay_rst_idle_r1  <= idelay_rst_idle;
        idelay_rst_idle_r2  <= idelay_rst_idle_r1;
        idelay_rst_idle_r3  <= idelay_rst_idle_r2;
        idelay_rst_idle_r4  <= idelay_rst_idle_r3;
        idelay_rst_idle_r5  <= idelay_rst_idle_r4;
        idelay_rst_idle_r6  <= idelay_rst_idle_r5;
        idelay_inc_idle_r1  <= idelay_inc_idle;
        idelay_inc_idle_r2  <= idelay_inc_idle_r1;
        idelay_inc_idle_r3  <= idelay_inc_idle_r2;
        idelay_inc_idle_r4  <= idelay_inc_idle_r3;
        idelay_inc_idle_r5  <= idelay_inc_idle_r4;
        idelay_inc_idle_r6  <= idelay_inc_idle_r5;
        detect_edge_idle_r1 <= detect_edge_idle;
        detect_edge_idle_r2 <= detect_edge_idle_r1;
        detect_edge_idle_r3 <= detect_edge_idle_r2;
        detect_edge_idle_r4 <= detect_edge_idle_r3;
        detect_edge_idle_r5 <= detect_edge_idle_r4;
        detect_edge_idle_r6 <= detect_edge_idle_r5;
        valid_data_count    <= data_count_valid;
      end if;
    end if;
  end process;

[Process]

PROCESS_150

( CAL_CLK )

Tap Delay Selection Complete for Data bus associated with a DQS.

Definition at line 212 of file ddr2_mem_tap_ctrl.vhd.

  process(CAL_CLK)
  begin
    if(CAL_CLK'event and CAL_CLK = '1') then
      if (reset_int = '1') then
        sel_complete <= '0';
      else
        sel_complete <= delay_sel_done;
      end if;
    end if;
  end process;

[Process]

PROCESS_151

( CAL_CLK )

Start detection of second transition only after 10 taps from first transition.

Definition at line 225 of file ddr2_mem_tap_ctrl.vhd.

  process(CAL_CLK)
  begin
    if(CAL_CLK'event and CAL_CLK = '1') then
      if (reset_int = '1') then
        dly_after_first_cnt <= "0000";
      else
        dly_after_first_cnt <= dly_after_first;
      end if;
    end if;
  end process;

[Process]

PROCESS_152

( CAL_CLK )

Tap Counter.

Definition at line 237 of file ddr2_mem_tap_ctrl.vhd.

  process(CAL_CLK)
  begin
    if(CAL_CLK'event and CAL_CLK = '1') then
      if ((reset_int = '1') or (tap_counter = "111111")) then
        tap_counter <= "000000";
      elsif (dly_inc = '1') then
        tap_counter <= tap_counter + '1';
      end if;
    end if;
  end process;

[Process]

PROCESS_153

( CAL_CLK )

Tap value for Data IDELAY circuit.

Definition at line 249 of file ddr2_mem_tap_ctrl.vhd.

  process(CAL_CLK)
  begin
    if(CAL_CLK'event and CAL_CLK = '1') then
      if (reset_int = '1') then
        first_edge_tap_count <= "000000";
        first_edge_cnt       <= "000";
      elsif ((transition = "01") and (first_edge = '0')) then
        first_edge_tap_count <= tap_counter;
        first_edge_cnt       <= "110";
      elsif(dly_inc = '1' and first_edge = '1' and first_edge_cnt /= "000") then  ---changed from first_edge_cnt != 3'b001 to first_edge_cnt != 3'b000 so that assignment of rising_edge only happens when first_edge_cnt == 001//////////////////////////////////
        first_edge_cnt <= first_edge_cnt - '1';
      end if;
    end if;
  end process;

[Process]

PROCESS_154

( CAL_CLK )

Tap counter.

Definition at line 265 of file ddr2_mem_tap_ctrl.vhd.

  process(CAL_CLK)
  begin
    if(CAL_CLK'event and CAL_CLK = '1') then
      if (reset_int = '1') then
        second_edge_tap_count <= "000000";
      elsif ((transition = "10") and (second_edge = '0')) then
        second_edge_tap_count <= tap_counter;
      end if;
    end if;
  end process;

[Process]

PROCESS_155

( CAL_CLK )

Tap counter.

Definition at line 277 of file ddr2_mem_tap_ctrl.vhd.

  process(CAL_CLK)
  begin
    if(CAL_CLK'event and CAL_CLK = '1') then
      if (reset_int = '1') then
        pulse_width_tap_count <= "000000";
      elsif (second_edge_r1 = '1') then
        pulse_width_tap_count <= (second_edge_tap_count - first_edge_tap_count);
      end if;
    end if;
  end process;

[Process]

PROCESS_156

( CAL_CLK )

Tap counter.

Definition at line 289 of file ddr2_mem_tap_ctrl.vhd.

  process(CAL_CLK)
  begin
    if(CAL_CLK'event and CAL_CLK = '1') then
      if (reset_int = '1') then
        pulse_center_tap_count <= "000000";
      elsif (second_edge_r2 = '1') then
        pulse_center_tap_count <= '0' & pulse_width_tap_count(5 downto 1);  -- Shift right to divide by 2 and find pulse center
      end if;
    end if;
  end process;

[Process]

PROCESS_157

( CAL_CLK )

Edge count.

Definition at line 301 of file ddr2_mem_tap_ctrl.vhd.

  process(CAL_CLK)
  begin
    if(CAL_CLK'event and CAL_CLK = '1') then
      if (reset_int = '1') then
        data_bit_tap_count <= "000000";
      elsif (second_edge_r3 = '1') then  -- 2 edges detected
        data_bit_tap_count <= first_edge_tap_count + pulse_center_tap_count;  --+ "000100";
      elsif ((transition = "01") and ((tap_counter = "111111"))) then  -- Only 1 edge detected
        --data_bit_tap_count  <= first_edge_tap_count + "010000";
        if (first_edge_tap_count(5) = '0') then
          data_bit_tap_count <= first_edge_tap_count + "010000";
        else
          data_bit_tap_count <= first_edge_tap_count - "010000";
        end if;
      elsif ((transition = "00") and ((tap_counter = "111111"))) then  -- No edges detected
        data_bit_tap_count <= "100000";
      end if;
    end if;
  end process;

[Process]

PROCESS_158

( CAL_CLK )

Logic required to determine whether the registered DQS is on the edge of meeting setup time in the FPGA clock domain. If DQS is on the edge, then the vector 'flag' will not be "1111" or "0000" and edge detection will not be executed. If DQS is not on the edge, then the vector 'flag' will be "1111" or "0000" and edge detection will be executed.

Definition at line 324 of file ddr2_mem_tap_ctrl.vhd.

  process(CAL_CLK)
  begin
    if CAL_CLK'event and CAL_CLK = '1' then
      if (reset_int = '1') then
        flag <= (others => '0');
      elsif (detect_edge_idle_r3 = '1' or idelay_inc_idle_r3 = '1' or idelay_rst_idle_r3 = '1') then
        if (curr_dqs_level /= prev_dqs_level) then
          flag(0) <= '0';
        else
          flag(0) <= '1';
        end if;
      elsif (detect_edge_idle_r4 = '1' or idelay_inc_idle_r4 = '1' or idelay_rst_idle_r4 = '1') then
        if (curr_dqs_level /= prev_dqs_level) then
          flag(1) <= '0';
        else
          flag(1) <= '1';
        end if;
      elsif (detect_edge_idle_r5 = '1' or idelay_inc_idle_r5 = '1' or idelay_rst_idle_r5 = '1') then
        if (curr_dqs_level /= prev_dqs_level) then
          flag(2) <= '0';
        else
          flag(2) <= '1';
        end if;
      elsif (detect_edge_idle_r6 = '1' or idelay_inc_idle_r6 = '1' or idelay_rst_idle_r6 = '1') then
        if (curr_dqs_level /= prev_dqs_level) then
          flag(3) <= '0';
        else
          flag(3) <= '1';
        end if;

      end if;
    end if;
  end process;

[Process]

PROCESS_159

( CAL_CLK )

First and second edge assignment logic.

Definition at line 359 of file ddr2_mem_tap_ctrl.vhd.

  process(CAL_CLK)
  begin
    if(CAL_CLK'event and CAL_CLK = '1') then
      if (reset_int = '1') then
        transition(1 downto 0) <= "00";
      elsif ((dly_after_first_cnt = "0000") and (state = detect_edge) and ((flag = X"0") or (flag = X"F"))) then
        if ((curr_dqs_level /= prev_dqs_level) and (transition_rst = '0') and (tap_counter > "000000")) then
          transition <= transition + '1';
        end if;
      elsif (transition_rst = '1') then
        transition <= "00";
      else
        transition <= transition;
      end if;
    end if;
  end process;

[Process]

PROCESS_160

( CAL_CLK )

Reset logic.

Definition at line 377 of file ddr2_mem_tap_ctrl.vhd.

  process(CAL_CLK)
  begin
    if(CAL_CLK'event and CAL_CLK = '1') then
      if (reset_int = '1') then
        transition_rst <= '0';
        first_edge     <= '0';
        second_edge    <= '0';
      else
        case transition is
          when "01" =>
            first_edge <= '1';
          when "10" =>
            if (transition_rst = '1') then
              second_edge    <= '0';
              transition_rst <= '0';
            else
              second_edge    <= '1';
              transition_rst <= '1';
            end if;
          when others =>
            first_edge  <= '0';
            second_edge <= '0';
        end case;
      end if;
    end if;
  end process;

[Process]

PROCESS_161

( CAL_CLK )

State Machine for edge detection and midpoint determination.

Definition at line 405 of file ddr2_mem_tap_ctrl.vhd.

  process(CAL_CLK)
  begin
    if(CAL_CLK'event and CAL_CLK = '1') then
      if (reset_int = '1') then         -- DQS IDELAY in reset
        dly_rst           <= '1';
        dly_ce            <= '0';
        dly_inc           <= '0';
        idelay_rst_idle   <= '0';
        detect_edge_idle  <= '0';
        idelay_inc_idle   <= '0';
        prev_dqs_level    <= curr_dqs_level;
        state(2 downto 0) <= idelay_rst;
      elsif ((CTRL_DUMMYREAD_START = '1') and (sel_complete = '0')) then
        case state is
          when "000" =>                 -- idelay_rst
            dly_rst           <= '1';
            dly_ce            <= '0';
            dly_inc           <= '0';
            idelay_rst_idle   <= '1';
            state(2 downto 0) <= idle;
          when "001" =>                 -- idle
            dly_rst          <= '0';
            dly_ce           <= '0';
            dly_inc          <= '0';
            idelay_rst_idle  <= '0';
            detect_edge_idle <= '0';
            idelay_inc_idle  <= '0';
            if (idelay_rst_idle_r5 = '1') then
              state(2 downto 0) <= idelay_inc;
            elsif ((idelay_inc_idle_r6 = '1') or ((detect_edge_idle_r6 = '1') and (second_edge_r2 = '0') and (tap_counter /= "111111"))) then
              state(2 downto 0) <= detect_edge;
            else
              state(2 downto 0) <= idle;
            end if;
          when "010" =>                 -- idelay_inc
            dly_rst           <= '0';
            dly_ce            <= '1';
            dly_inc           <= '1';
            idelay_inc_idle   <= '1';
            state(2 downto 0) <= idle;
            if((flag(3 downto 0) = X"0") or (flag(3 downto 0) = X"F")) then
              prev_dqs_level <= curr_dqs_level;
            else
              prev_dqs_level <= prev_dqs_level;
            end if;

          when "011" =>                 -- detect_edge
            dly_rst           <= '0';
            dly_ce            <= '1';
            dly_inc           <= '1';
            detect_edge_idle  <= '1';
            state(2 downto 0) <= idle;
            if((flag(3 downto 0) = X"0") or (flag(3 downto 0) = X"F")) then
              prev_dqs_level <= curr_dqs_level;
            else
              prev_dqs_level <= prev_dqs_level;
            end if;
          when others =>
            dly_rst           <= '0';
            dly_ce            <= '0';
            dly_inc           <= '0';
            idelay_rst_idle   <= '0';
            detect_edge_idle  <= '0';
            idelay_inc_idle   <= '0';
            prev_dqs_level    <= curr_dqs_level;
            state(2 downto 0) <= idle;
        end case;
      else
        dly_rst          <= '0';
        dly_ce           <= '0';
        dly_inc          <= '0';
        idelay_rst_idle  <= '0';
        detect_edge_idle <= '0';
        idelay_inc_idle  <= '0';
        prev_dqs_level   <= curr_dqs_level;
        state            <= idelay_rst;
      end if;
    end if;
  end process;

---

Member Data Documentation

detect_edge std_logic_vector ( 2 downto 0 ) := " 011 " [Constant]

FSM enum.

Definition at line 137 of file ddr2_mem_tap_ctrl.vhd.

idelay_inc std_logic_vector ( 2 downto 0 ) := " 010 " [Constant]

FSM enum.

Definition at line 135 of file ddr2_mem_tap_ctrl.vhd.

idelay_rst std_logic_vector ( 2 downto 0 ) := " 000 " [Constant]

FSM enum.

Definition at line 131 of file ddr2_mem_tap_ctrl.vhd.

idle std_logic_vector ( 2 downto 0 ) := " 001 " [Constant]

FSM enum.

Definition at line 133 of file ddr2_mem_tap_ctrl.vhd.

---

The documentation for this class was generated from the following file:

• ddr2_mem_tap_ctrl.vhd
