bunchcycle.bunchcycle_arc Architecture Reference

Collects pulse information and groups it per bunch crossing. More...

Inheritance diagram for bunchcycle.bunchcycle_arc:

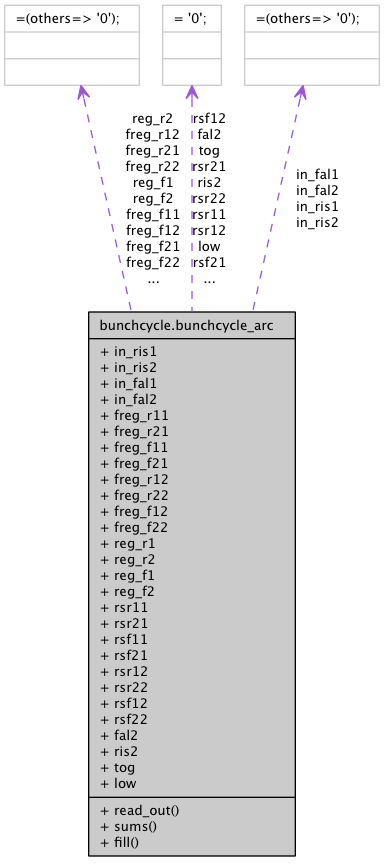

Collaboration diagram for bunchcycle.bunchcycle_arc:

List of all members.

Processes

read_out ( CLK , RESET )

read registers out

sums ( CLK2X , RESET )

multiplicity

fill ( CLK2X , RESET )

fill registers

Signals

in_ris1 std_logic_vector ( 4 downto 0 ) := ( others = > ' 0 ' )

in_ris2 std_logic_vector ( 4 downto 0 ) := ( others = > ' 0 ' )

in_fal1 std_logic_vector ( 4 downto 0 ) := ( others = > ' 0 ' )

in_fal2 std_logic_vector ( 4 downto 0 ) := ( others = > ' 0 ' )

freg_r11 std_logic_vector ( 5 downto 0 ) := ( others = > ' 0 ' )

freg_r21 std_logic_vector ( 5 downto 0 ) := ( others = > ' 0 ' )

freg_f11 std_logic_vector ( 5 downto 0 ) := ( others = > ' 0 ' )

freg_f21 std_logic_vector ( 5 downto 0 ) := ( others = > ' 0 ' )

freg_r12 std_logic_vector ( 5 downto 0 ) := ( others = > ' 0 ' )

freg_r22 std_logic_vector ( 5 downto 0 ) := ( others = > ' 0 ' )

freg_f12 std_logic_vector ( 5 downto 0 ) := ( others = > ' 0 ' )

freg_f22 std_logic_vector ( 5 downto 0 ) := ( others = > ' 0 ' )

reg_r1 std_logic_vector ( 5 downto 0 ) := ( others = > ' 0 ' )

reg_r2 std_logic_vector ( 5 downto 0 ) := ( others = > ' 0 ' )

reg_f1 std_logic_vector ( 5 downto 0 ) := ( others = > ' 0 ' )

reg_f2 std_logic_vector ( 5 downto 0 ) := ( others = > ' 0 ' )

rsr11 std_logic := ' 0 '

rsr21 std_logic := ' 0 '

rsf11 std_logic := ' 0 '

rsf21 std_logic := ' 0 '

rsr12 std_logic := ' 0 '

rsr22 std_logic := ' 0 '

rsf12 std_logic := ' 0 '

rsf22 std_logic := ' 0 '

fal2 std_logic := ' 0 '

ris2 std_logic := ' 0 '

tog std_logic := ' 0 '

low std_logic := ' 0 '

Detailed Description

Collects pulse information and groups it per bunch crossing.

Consists of separate input registers for each half of BC, according to status bits values are forwarded to outputs.

Definition at line 77 of file bunchcycle.vhd.

Member Function Documentation

[Process]

fill		( CLK2X ,
		RESET )

fill registers

Definition at line 195 of file bunchcycle.vhd.

00195   fill : process (CLK2X, RESET)
00196   begin  -- process fill
00197     if RESET = '1' then                     -- asynchronous reset (active high)
00198       freg_r11(4 downto 0) <= (others => '0');
00199       freg_r21(4 downto 0) <= (others => '0');
00200       freg_f11(4 downto 0) <= (others => '0');
00201       freg_f21(4 downto 0) <= (others => '0');
00202       freg_r12(4 downto 0) <= (others => '0');
00203       freg_r22(4 downto 0) <= (others => '0');
00204       freg_f12(4 downto 0) <= (others => '0');
00205       freg_f22(4 downto 0) <= (others => '0');
00206       rsr12                <= '0';
00207       rsr22                <= '0';
00208       rsf12                <= '0';
00209       rsf22                <= '0';
00210       rsr11                <= '0';
00211       rsr21                <= '0';
00212       rsf11                <= '0';
00213       rsf21                <= '0';
00214       tog                  <= '0';
00215     elsif CLK2X'event and CLK2X = '1' then  -- rising clock edge
00216       if EN = '1' then
00217
00218         tog <= not tog;
00219         -- first half
00220         if tog = '1' then
00221
00222           if (in_fal1 = 0) and (SR1 = '1') then
00223             freg_f11(4 downto 0) <= (others => '1');
00224             rsf11                <= SF1;
00225             freg_f12(4 downto 0) <= in_fal1;
00226             rsf12                <= SF1;
00227             freg_r11(4 downto 0) <= in_ris1;
00228             rsr11                <= SR1;
00229             freg_r12(4 downto 0) <= in_ris2;
00230             rsr12                <= SR2;
00231           elsif (in_fal2 = 0) and (SR2 = '1') then
00232             freg_f11(4 downto 0) <= in_fal1;
00233             rsf11                <= SF1;
00234             freg_f12(4 downto 0) <= (others => '1');
00235             rsf12                <= SF2;
00236             freg_r11(4 downto 0) <= in_ris1;
00237             rsr11                <= SR1;
00238             freg_r12(4 downto 0) <= in_ris2;
00239             rsr12                <= SR2;
00240           else
00241             freg_f11(4 downto 0) <= in_fal1;
00242             rsf11                <= SF1;
00243             freg_f12(4 downto 0) <= in_fal2;
00244             rsf12                <= SF2;
00245             freg_r11(4 downto 0) <= in_ris1;
00246             rsr11                <= SR1;
00247             freg_r12(4 downto 0) <= in_ris2;
00248             rsr12                <= SR2;
00249           end if;
00250
00251           -- second half
00252         else
00253
00254           if (in_fal1 = 0) and (SR1 = '1') then
00255             freg_f21(4 downto 0) <= (others => '1');
00256             rsf21                <= SF1;
00257             freg_f22(4 downto 0) <= in_fal1;
00258             rsf22                <= SF1;
00259             freg_r21(4 downto 0) <= in_ris1;
00260             rsr21                <= SR1;
00261             freg_r22(4 downto 0) <= in_ris2;
00262             rsr22                <= SR2;
00263           elsif (in_fal2 = 0) and (SR2 = '1') then
00264             freg_f21(4 downto 0) <= in_fal1;
00265             rsf21                <= SF1;
00266             freg_f22(4 downto 0) <= (others => '1');
00267             rsf22                <= SF2;
00268             freg_r21(4 downto 0) <= in_ris1;
00269             rsr21                <= SR1;
00270             freg_r22(4 downto 0) <= in_ris2;
00271             rsr22                <= SR2;
00272           else
00273             freg_f21(4 downto 0) <= in_fal1;
00274             rsf21                <= SF1;
00275             freg_f22(4 downto 0) <= in_fal2;
00276             rsf22                <= SF2;
00277             freg_r21(4 downto 0) <= in_ris1;
00278             rsr21                <= SR1;
00279             freg_r22(4 downto 0) <= in_ris2;
00280             rsr22                <= SR2;
00281           end if;
00282
00283         end if;
00284
00285       else
00286         tog <= '0';
00287       end if;
00288     end if;
00289   end process fill;

[Process]

read_out		( CLK ,
		RESET )

read registers out

Definition at line 131 of file bunchcycle.vhd.

00131   read_out : process (CLK, RESET)
00132   begin  -- process read
00133     if RESET = '1' then                 -- asynchronous reset (active high)
00134       STATUS_EF1 <= '0';
00135       STATUS_ER1 <= '0';
00136       STATUS_EF2 <= '0';
00137       STATUS_ER2 <= '0';
00138       EDGE_RIS1  <= (others => '0');
00139       EDGE_FAL1  <= (others => '0');
00140       EDGE_RIS2  <= (others => '0');
00141       EDGE_FAL2  <= (others => '0');
00142     elsif CLK'event and CLK = '1' then  -- rising clock edge
00143       if (reg_f1 > reg_f2) and (fal2 = '1') then
00144         EDGE_FAL2 <= reg_f1;
00145         EDGE_FAL1 <= reg_f2;
00146       else
00147         EDGE_FAL2 <= reg_f2;
00148         EDGE_FAL1 <= reg_f1;
00149       end if;
00150       if (reg_r1 > reg_r2) and (ris2 = '1') then
00151         EDGE_RIS1 <= reg_r2;
00152         EDGE_RIS2 <= reg_r1;
00153       else
00154         EDGE_RIS1 <= reg_r1;
00155         EDGE_RIS2 <= reg_r2;
00156       end if;
00157       STATUS_EF1 <= rsf11 or rsf21;
00158       STATUS_ER1 <= rsr11 or rsr21;
00159       STATUS_EF2 <= fal2;
00160       STATUS_ER2 <= ris2;
00161     end if;
00162   end process read_out;

[Process]

sums		( CLK2X ,
		RESET )

multiplicity

Definition at line 168 of file bunchcycle.vhd.

00168   sums : process (CLK2X, RESET)
00169   begin  -- process sums
00170     if RESET = '1' then                     -- asynchronous reset (active high)
00171       SUM_R_OUT <= (others => '0');
00172       SUM_F_OUT <= (others => '0');
00173     elsif CLK2X'event and CLK2X = '1' then  -- rising clock edge
00174       SUM_R_OUT <= ("0000000" & SR1) + ("0000000" & SR2);
00175       SUM_F_OUT <= ("0000000" & SF1) + ("0000000" & SF2);
00176     end if;
00177   end process sums;
