GT11_INIT_TX.rtl Architecture Reference

Initialization logic for RocketIO TX. More...

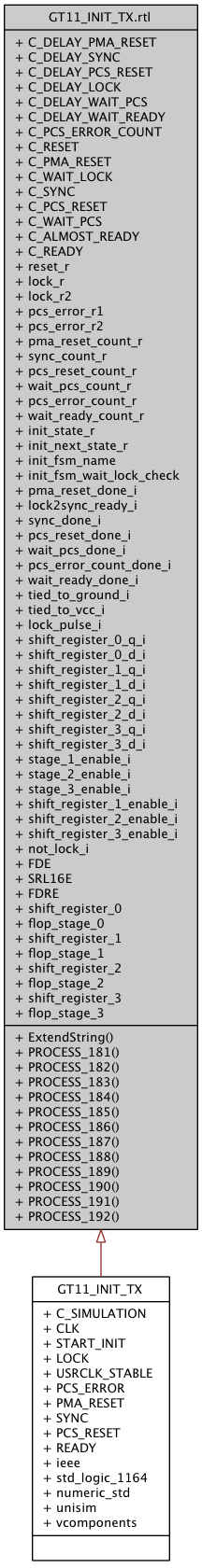

Inheritance diagram for GT11_INIT_TX.rtl:

Inheritance graph
[legend]
Collaboration diagram for GT11_INIT_TX.rtl:

Collaboration graph
[legend]

List of all members.


Functions

string  ExtendString ( string_in: in string , string_len: in integer )
 extend a string

Processes

PROCESS_181  ( CLK , START_INIT )
 Synchronize START_INIT.
PROCESS_182  ( CLK )
 Synchronize LOCK.
PROCESS_183  ( CLK )
 Synchronize PCS_ERROR and generate a pulse when PCS error is high.
PROCESS_184  ( CLK )
 Counter for holding PMA reset for an amount of C_DELAY_PMA_RESET.
PROCESS_185  ( CLK )
PROCESS_186  ( CLK )
 Counter for holding SYNC for an amount of C_DELAY_SYNC.
PROCESS_187  ( CLK )
 Counter for holding PCS reset for an amount of C_DELAY_PCS_RESET.
PROCESS_188  ( CLK )
 Counter for waiting C_DELAY_WAIT_PCS after de-assertion of PCS reset.
PROCESS_189  ( CLK )
 Counter for PCS error.
PROCESS_190  ( CLK )
 Counter for the READY signal.
PROCESS_191  ( CLK )
 GT11 Initialization FSM reset.
PROCESS_192  ( reset_r(0) , pma_reset_done_i , init_fsm_wait_lock_check , lock_r , sync_done_i , pcs_reset_done_i , wait_pcs_done_i , pcs_error_r1 , pcs_error_count_done_i , wait_ready_done_i )

Components

FDE
 component FDE
SRL16E
 component SRL16
FDRE
 component FDRE

Constants

C_DELAY_PMA_RESET  unsigned ( 2 downto 0 ) := " 011 "
 3
C_DELAY_SYNC  unsigned ( 7 downto 0 ) := " 01000000 "
 64
C_DELAY_PCS_RESET  unsigned ( 2 downto 0 ) := " 011 "
 3
C_DELAY_LOCK  unsigned ( 4 downto 0 ) := " 10000 "
 16
C_DELAY_WAIT_PCS  unsigned ( 3 downto 0 ) := " 0101 "
 5
C_DELAY_WAIT_READY  unsigned ( 7 downto 0 ) := " 01000000 "
 64
C_PCS_ERROR_COUNT  unsigned ( 4 downto 0 ) := " 10000 "
 16
C_RESET  unsigned ( 7 downto 0 ) := " 00000001 "
 GT11 Initialization FSM state.
C_PMA_RESET  unsigned ( 7 downto 0 ) := " 00000010 "
 GT11 Initialization FSM state.
C_WAIT_LOCK  unsigned ( 7 downto 0 ) := " 00000100 "
 GT11 Initialization FSM state.
C_SYNC  unsigned ( 7 downto 0 ) := " 00001000 "
 GT11 Initialization FSM state.
C_PCS_RESET  unsigned ( 7 downto 0 ) := " 00010000 "
 GT11 Initialization FSM state.
C_WAIT_PCS  unsigned ( 7 downto 0 ) := " 00100000 "
 GT11 Initialization FSM state.
C_ALMOST_READY  unsigned ( 7 downto 0 ) := " 01000000 "
 GT11 Initialization FSM state.
C_READY  unsigned ( 7 downto 0 ) := " 10000000 "
 GT11 Initialization FSM state.

Signals

reset_r  unsigned ( 1 downto 0 )
lock_r  std_logic
lock_r2  std_logic
pcs_error_r1  std_logic
pcs_error_r2  std_logic
pma_reset_count_r  unsigned ( 2 downto 0 )
sync_count_r  unsigned ( 7 downto 0 )
pcs_reset_count_r  unsigned ( 2 downto 0 )
wait_pcs_count_r  unsigned ( 3 downto 0 )
pcs_error_count_r  unsigned ( 4 downto 0 )
wait_ready_count_r  unsigned ( 7 downto 0 )
init_state_r  unsigned ( 7 downto 0 )
init_next_state_r  unsigned ( 7 downto 0 )
init_fsm_name  unsigned ( 40 *7 downto 0 )
init_fsm_wait_lock_check  std_logic
pma_reset_done_i  std_logic
lock2sync_ready_i  std_logic
sync_done_i  std_logic
pcs_reset_done_i  std_logic
wait_pcs_done_i  std_logic
pcs_error_count_done_i  std_logic
wait_ready_done_i  std_logic
tied_to_ground_i  std_logic
tied_to_vcc_i  std_logic
lock_pulse_i  std_logic
shift_register_0_q_i  std_logic
shift_register_0_d_i  std_logic
shift_register_1_q_i  std_logic
shift_register_1_d_i  std_logic
shift_register_2_q_i  std_logic
shift_register_2_d_i  std_logic
shift_register_3_q_i  std_logic
shift_register_3_d_i  std_logic
stage_1_enable_i  std_logic
stage_2_enable_i  std_logic
stage_3_enable_i  std_logic
shift_register_1_enable_i  std_logic
shift_register_2_enable_i  std_logic
shift_register_3_enable_i  std_logic
not_lock_i  std_logic

Component Instantiations

shift_register_0 SRL16E
flop_stage_0 FDE
 extra FF last stage
shift_register_1 SRL16E
 SRL16 Stage One - Second stage of shifting.
flop_stage_1 FDE
 extra FF last stage
shift_register_2 SRL16E
 SRL16 Stage Two - Third stage of shifting.
flop_stage_2 FDE
 extra FF last stage
shift_register_3 SRL16E
 SRL16 Stage Three - Fourth stage of shifting.
flop_stage_3 FDRE
 extra FF last stage


Detailed Description

Initialization logic for RocketIO TX.

Definition at line 76 of file gt11_init_tx.vhd.


Member Function Documentation

[Function]
string ExtendString ( string_in in string ,
string_len in integer )

extend a string

Definition at line 212 of file gt11_init_tx.vhd.

00212   function ExtendString (string_in  : string;
00213                          string_len : integer)
00214     return string is
00215     variable string_out : string(1 to string_len) := (others => ' ');
00216
00217   begin
00218     if string_in'length > string_len then
00219       string_out := string_in(1 to string_len);
00220     else
00221       string_out(1 to string_in'length) := string_in;
00222     end if;
00223     return string_out;
00224   end ExtendString;

[Process]
PROCESS_181 ( CLK ,
START_INIT )

Synchronize START_INIT.

Definition at line 234 of file gt11_init_tx.vhd.

00234   process (CLK, START_INIT)
00235   begin
00236     if (START_INIT = '1') then
00237       reset_r <= "11";
00238     elsif (rising_edge(CLK)) then
00239       reset_r <= '0' & reset_r(1);
00240     end if;
00241   end process;

[Process]
PROCESS_182 ( CLK )

Synchronize LOCK.

Definition at line 245 of file gt11_init_tx.vhd.

00245   process(CLK)
00246   begin
00247     if(CLK'event and CLK = '1') then
00248       if (reset_r(0) = '1') then
00249         lock_r <= '0';
00250       else
00251         lock_r <= LOCK;
00252       end if;
00253     end if;
00254   end process;

[Process]
PROCESS_183 ( CLK )

Synchronize PCS_ERROR and generate a pulse when PCS error is high.

Definition at line 258 of file gt11_init_tx.vhd.

00258   process(CLK)
00259   begin
00260     if(CLK'event and CLK = '1') then
00261       if(reset_r(0) = '1') then
00262         pcs_error_r1 <= '0';
00263       else
00264         pcs_error_r1 <= PCS_ERROR;
00265       end if;
00266     end if;
00267   end process;

[Process]
PROCESS_184 ( CLK )

Counter for holding PMA reset for an amount of C_DELAY_PMA_RESET.

Definition at line 277 of file gt11_init_tx.vhd.

00277   process(CLK)
00278   begin
00279     if(CLK'event and CLK = '1') then
00280       if(init_state_r /= C_PMA_RESET) then
00281         pma_reset_count_r <= C_DELAY_PMA_RESET;
00282       else
00283         pma_reset_count_r <= pma_reset_count_r - 1;
00284       end if;
00285     end if;
00286   end process;

[Process]
PROCESS_185 ( CLK )

Create a pulse from TXLOCK to initialize SRL16's. Need to register the LOCK signal from the GT11 twice since the LOCK is based on REFCLK

Definition at line 300 of file gt11_init_tx.vhd.

00300     process(CLK)
00301     begin
00302       if(CLK'event and CLK = '1') then
00303         if (reset_r(0) = '1') then
00304           lock_r2 <= '0';
00305         else
00306           lock_r2 <= lock_r;
00307         end if;
00308       end if;
00309     end process;

[Process]
PROCESS_186 ( CLK )

Counter for holding SYNC for an amount of C_DELAY_SYNC.

Definition at line 444 of file gt11_init_tx.vhd.

00444   process(CLK)
00445   begin
00446     if(CLK'event and CLK = '1') then
00447       if(init_state_r /= C_SYNC) then
00448         sync_count_r <= C_DELAY_SYNC;
00449       else
00450         sync_count_r <= sync_count_r - 1;
00451       end if;
00452     end if;
00453   end process;

[Process]
PROCESS_187 ( CLK )

Counter for holding PCS reset for an amount of C_DELAY_PCS_RESET.

Definition at line 458 of file gt11_init_tx.vhd.

00458   process(CLK)
00459   begin
00460     if(CLK'event and CLK = '1') then
00461       if(init_state_r /= C_PCS_RESET) then
00462         pcs_reset_count_r <= C_DELAY_PCS_RESET;
00463       else
00464         pcs_reset_count_r <= pcs_reset_count_r - 1;
00465       end if;
00466     end if;
00467   end process;

[Process]
PROCESS_188 ( CLK )

Counter for waiting C_DELAY_WAIT_PCS after de-assertion of PCS reset.

Definition at line 472 of file gt11_init_tx.vhd.

00472   process(CLK)
00473   begin
00474     if(CLK'event and CLK = '1') then
00475       if(init_state_r /= C_WAIT_PCS) then
00476         wait_pcs_count_r <= C_DELAY_WAIT_PCS;
00477       else
00478         wait_pcs_count_r <= wait_pcs_count_r - 1;
00479       end if;
00480     end if;
00481   end process;

[Process]
PROCESS_189 ( CLK )

Counter for PCS error.

Definition at line 486 of file gt11_init_tx.vhd.

00486   process(CLK)
00487   begin
00488     if(CLK'event and CLK = '1') then
00489       if(init_state_r = C_PMA_RESET) then
00490         pcs_error_count_r <= C_PCS_ERROR_COUNT;
00491       elsif (((init_state_r = C_ALMOST_READY) or (init_state_r = C_READY)) and (pcs_error_r1 and lock_r) = '1') then
00492         pcs_error_count_r <= pcs_error_count_r - 1;
00493       end if;
00494     end if;
00495   end process;

[Process]
PROCESS_190 ( CLK )

Counter for the READY signal.

Definition at line 500 of file gt11_init_tx.vhd.

00500   process(CLK)
00501   begin
00502     if(CLK'event and CLK = '1') then
00503       if((init_state_r /= C_ALMOST_READY) or (pcs_error_r1 = '1')) then
00504         wait_ready_count_r <= C_DELAY_WAIT_READY;
00505       elsif(pcs_error_r1 = '0') then
00506         wait_ready_count_r <= wait_ready_count_r - 1;
00507       end if;
00508     end if;
00509   end process;

[Process]
PROCESS_191 ( CLK )

GT11 Initialization FSM reset.

Definition at line 514 of file gt11_init_tx.vhd.

00514   process (CLK)
00515   begin
00516     if (rising_edge(CLK)) then
00517       if (reset_r(0) = '1') then
00518         init_state_r <= C_RESET;
00519       else
00520         init_state_r <= init_next_state_r;
00521       end if;
00522     end if;
00523   end process;

[Process]
PROCESS_192 ( reset_r(0) ,
pma_reset_done_i ,
init_fsm_wait_lock_check ,
lock_r ,
sync_done_i ,
pcs_reset_done_i ,
wait_pcs_done_i ,
pcs_error_r1 ,
pcs_error_count_done_i ,
wait_ready_done_i )

GT11 Initialization FSM - This FSM is used to initialize the GT11 block asserting the PMA and PCS reset in sequence. It also takes into account of any error that may happen during initialization. The block uses USRCLK as reference for the delay. DO NOT use the output of the GT11 clocks for this reset module, as the output clocks may change when reset is applied to the GT11. Use a system clock, and make sure that the wait time for each state equals the specified number of USRCLK cycles.

The following steps are applied:

  1. C_RESET: Upon system reset of this block, PMA reset will be asserted
  2. C_PMA_RESET: PMA reset is held for 3 USRCLK cycles
  3. C_WAIT_LOCK: Wait for LOCK. After LOCK is asserted, wait for 12,000 USRCLK2 cycles and wait for the USRCLK of the GT11s to be stable before going to the next state to assert the PCS reset. If LOCK gets de-asserted, we reset the counter and wait for LOCK again.
  4. C_SYNC: Assert SYNG for 64 SYNC cycles. If LOCK gets de-asserted, we go back to Step 3.
  5. C_PCS_RESET: Assert PCS reset for 3 USRCLK cycles. If LOCK gets de-asserted, we go back to Step 3.
  6. C_WAIT_PCS: After de-assertion of PCS reset, wait 5 USRCLK cycles. If LOCK gets de-asserted, we go back to Step 3.
  7. C_ALMOST_READY: Go to the Almost Ready state. If LOCK gets de-asserted, we go back to Step 3. If there is a PCS error (i.e. buffer error) detected while LOCK is high, we go back to Step 4. If we cycle PCS reset for an N number of C_PCS_ERROR_COUNT, we go back to Step 1 to do a PMA reset.
  8. C_READY: Go to the Ready state. We reach this state after waiting 64 USRCLK cycles without any PCS errors. We assert the READY signal to denote that this block finishes initializing the GT11. If there is a PCS error during this state, we go back to Step 4. If LOCK is lost, we go back to Step 3.

Definition at line 558 of file gt11_init_tx.vhd.

00558   process (reset_r(0), pma_reset_done_i, init_fsm_wait_lock_check, lock_r,
00559            sync_done_i, pcs_reset_done_i, wait_pcs_done_i, pcs_error_r1,
00560            pcs_error_count_done_i, wait_ready_done_i)
00561     variable init_fsm_name : string(1 to 25);
00562   begin
00563     case init_state_r is
00564
00565       when C_RESET =>
00566
00567         if (reset_r(0) = '1') then
00568           init_next_state_r <= C_RESET;
00569         else
00570           init_next_state_r <= C_PMA_RESET;
00571         end if;
00572         init_fsm_name := ExtendString("C_RESET", 25);
00573
00574       when C_PMA_RESET =>
00575
00576         if (pma_reset_done_i = '1') then
00577           init_next_state_r <= C_WAIT_LOCK;
00578         else
00579           init_next_state_r <= C_PMA_RESET;
00580         end if;
00581         init_fsm_name := ExtendString("C_PMA_RESET", 25);
00582
00583       when C_WAIT_LOCK =>
00584
00585         if(init_fsm_wait_lock_check = '1') then
00586           init_next_state_r <= C_SYNC;
00587         else
00588           init_next_state_r <= C_WAIT_LOCK;
00589         end if;
00590         init_fsm_name := ExtendString("C_WAIT_LOCK", 25);
00591
00592       when C_SYNC =>
00593         if (lock_r = '1') then
00594           if (sync_done_i = '1') then
00595             init_next_state_r <= C_PCS_RESET;
00596           else
00597             init_next_state_r <= C_SYNC;
00598           end if;
00599         else
00600           init_next_state_r <= C_WAIT_LOCK;
00601         end if;
00602         init_fsm_name := ExtendString("C_SYNC", 25);
00603
00604       when C_PCS_RESET =>
00605         if (lock_r = '1') then
00606           if (pcs_reset_done_i = '1') then
00607             init_next_state_r <= C_WAIT_PCS;
00608           else
00609             init_next_state_r <= C_PCS_RESET;
00610           end if;
00611         else
00612           init_next_state_r <= C_WAIT_LOCK;
00613         end if;
00614         init_fsm_name := ExtendString("C_PCS_RESET", 25);
00615
00616       when C_WAIT_PCS =>
00617         if (lock_r = '1') then
00618           if (wait_pcs_done_i = '1') then
00619             init_next_state_r <= C_ALMOST_READY;
00620           else
00621             init_next_state_r <= C_WAIT_PCS;
00622           end if;
00623         else
00624           init_next_state_r <= C_WAIT_LOCK;
00625         end if;
00626         init_fsm_name := ExtendString("C_WAIT_PCS", 25);
00627
00628       when C_ALMOST_READY =>
00629         if (lock_r = '0') then
00630           init_next_state_r <= C_WAIT_LOCK;
00631         elsif ((pcs_error_r1 = '1') and (pcs_error_count_done_i = '0')) then
00632           init_next_state_r <= C_SYNC;
00633         elsif ((pcs_error_r1 = '1') and (pcs_error_count_done_i = '1')) then
00634           init_next_state_r <= C_PMA_RESET;
00635         elsif (wait_ready_done_i = '1') then
00636           init_next_state_r <= C_READY;
00637         else
00638           init_next_state_r <= C_ALMOST_READY;
00639         end if;
00640         init_fsm_name := ExtendString("C_ALMOST_READY", 25);
00641
00642       when C_READY =>
00643         if ((lock_r = '1') and (pcs_error_r1 = '0')) then
00644           init_next_state_r <= C_READY;
00645         elsif ((lock_r = '1') and (pcs_error_r1 = '1')) then
00646           init_next_state_r <= C_PCS_RESET;
00647         else
00648           init_next_state_r <= C_WAIT_LOCK;
00649         end if;
00650         init_fsm_name := ExtendString("C_READY", 25);
00651
00652       when others =>
00653         init_next_state_r <= C_RESET;
00654         init_fsm_name     := ExtendString("C_RESET", 25);
00655
00656     end case;
00657   end process;


Member Data Documentation

C_ALMOST_READY unsigned ( 7 downto 0 ) := " 01000000 " [Constant]

GT11 Initialization FSM state.

Definition at line 111 of file gt11_init_tx.vhd.

C_DELAY_LOCK unsigned ( 4 downto 0 ) := " 10000 " [Constant]

16

Definition at line 91 of file gt11_init_tx.vhd.

C_DELAY_PCS_RESET unsigned ( 2 downto 0 ) := " 011 " [Constant]

3

Definition at line 89 of file gt11_init_tx.vhd.

C_DELAY_PMA_RESET unsigned ( 2 downto 0 ) := " 011 " [Constant]

3

Definition at line 85 of file gt11_init_tx.vhd.

C_DELAY_SYNC unsigned ( 7 downto 0 ) := " 01000000 " [Constant]

64

Definition at line 87 of file gt11_init_tx.vhd.

C_DELAY_WAIT_PCS unsigned ( 3 downto 0 ) := " 0101 " [Constant]

5

Definition at line 93 of file gt11_init_tx.vhd.

C_DELAY_WAIT_READY unsigned ( 7 downto 0 ) := " 01000000 " [Constant]

64

Definition at line 95 of file gt11_init_tx.vhd.

C_PCS_ERROR_COUNT unsigned ( 4 downto 0 ) := " 10000 " [Constant]

16

Definition at line 97 of file gt11_init_tx.vhd.

C_PCS_RESET unsigned ( 7 downto 0 ) := " 00010000 " [Constant]

GT11 Initialization FSM state.

Definition at line 107 of file gt11_init_tx.vhd.

C_PMA_RESET unsigned ( 7 downto 0 ) := " 00000010 " [Constant]

GT11 Initialization FSM state.

Definition at line 101 of file gt11_init_tx.vhd.

C_READY unsigned ( 7 downto 0 ) := " 10000000 " [Constant]

GT11 Initialization FSM state.

Definition at line 113 of file gt11_init_tx.vhd.

C_RESET unsigned ( 7 downto 0 ) := " 00000001 " [Constant]

GT11 Initialization FSM state.

Definition at line 99 of file gt11_init_tx.vhd.

C_SYNC unsigned ( 7 downto 0 ) := " 00001000 " [Constant]

GT11 Initialization FSM state.

Definition at line 105 of file gt11_init_tx.vhd.

C_WAIT_LOCK unsigned ( 7 downto 0 ) := " 00000100 " [Constant]

GT11 Initialization FSM state.

Definition at line 103 of file gt11_init_tx.vhd.

C_WAIT_PCS unsigned ( 7 downto 0 ) := " 00100000 " [Constant]

GT11 Initialization FSM state.

Definition at line 109 of file gt11_init_tx.vhd.

FDE [Component]

component FDE

Definition at line 161 of file gt11_init_tx.vhd.

FDRE [Component]

component FDRE

Definition at line 195 of file gt11_init_tx.vhd.

flop_stage_0 FDE [Component Instantiation]

extra FF last stage

Definition at line 338 of file gt11_init_tx.vhd.

flop_stage_1 FDE [Component Instantiation]

extra FF last stage

Definition at line 366 of file gt11_init_tx.vhd.

flop_stage_2 FDE [Component Instantiation]

extra FF last stage

Definition at line 397 of file gt11_init_tx.vhd.

flop_stage_3 FDRE [Component Instantiation]

extra FF last stage

Definition at line 431 of file gt11_init_tx.vhd.

shift_register_0 SRL16E [Component Instantiation]

Counter for the wait time between assertion of TXLOCK and assertion to TXSYNC cycles. There is a requirement of 12,000 TXUSRCLK2 cycles between these two points. Please refer to the reset section of the User Guide for more information. This is built with SRL16s. In this module, we assume 1 USRCLK2 = 1 USRCLK (please adjust the address of the fourth SRL16 stage as neccessary). The whole four stages give 12,288 cycles of delay (16 * 16 * 16 * 3); note that the last stage has an extra FF at the end.

Definition at line 324 of file gt11_init_tx.vhd.

shift_register_1 SRL16E [Component Instantiation]

SRL16 Stage One - Second stage of shifting.

Definition at line 352 of file gt11_init_tx.vhd.

shift_register_2 SRL16E [Component Instantiation]

SRL16 Stage Two - Third stage of shifting.

Definition at line 383 of file gt11_init_tx.vhd.

shift_register_3 SRL16E [Component Instantiation]

SRL16 Stage Three - Fourth stage of shifting.

Definition at line 415 of file gt11_init_tx.vhd.

SRL16E [Component]

component SRL16

Definition at line 176 of file gt11_init_tx.vhd.


The documentation for this class was generated from the following file:

Author: M.Niegl
Generated on Tue Nov 4 00:51:32 2008 for BCM-AAA by doxygen 1.5.7.1-20081012
