BID_cnt.BID_cnt_arc Architecture Reference

Bunch-Counter. More...

Inheritance diagram for BID_cnt.BID_cnt_arc:

[legend]

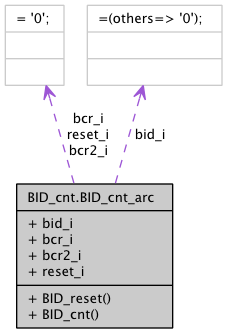

Collaboration diagram for BID_cnt.BID_cnt_arc:

[legend]

List of all members.

Processes
BID_reset	( BC )
	process for resetting bunch counter
BID_cnt	( BC )
	process for counting bunches
Signals
bid_i	std_logic_vector ( 11 downto 0 ) := ( others = > ' 0 ' )
bcr_i	std_logic := ' 0 '
bcr2_i	std_logic := ' 0 '
reset_i	std_logic := ' 0 '

---

Detailed Description

Bunch-Counter.

This Entity counts LHC bunch crossings by taking the bunch clock from the LTP as a reference. Get reset by the BCR, also from the LTP

Definition at line 58 of file BID_cnt.vhd.

---

Member Function Documentation

[Process]

BID_cnt

( BC )

process for counting bunches

Definition at line 82 of file BID_cnt.vhd.

  BID_cnt : process(BC)
  begin
    if BC'event and BC = '1' then
      if reset_i = '1' then
        bid_i <= (others => '0');
      else
        bid_i <= bid_i + 1;
      end if;
    end if;
  end process BID_cnt;

[Process]

BID_reset

( BC )

process for resetting bunch counter

Definition at line 71 of file BID_cnt.vhd.

  BID_reset : process(BC)
  begin
    if BC'event and BC = '1' then
      bcr_i  <= BCR;
      bcr2_i <= bcr_i;
    end if;
  end process BID_reset;

---

The documentation for this class was generated from the following file:

• BID_cnt.vhd
