ddr_data_buffer.ddr_data_buffer_arc Architecture Reference
interface between DAQ & DDR More...
Inheritance diagram for ddr_data_buffer.ddr_data_buffer_arc:

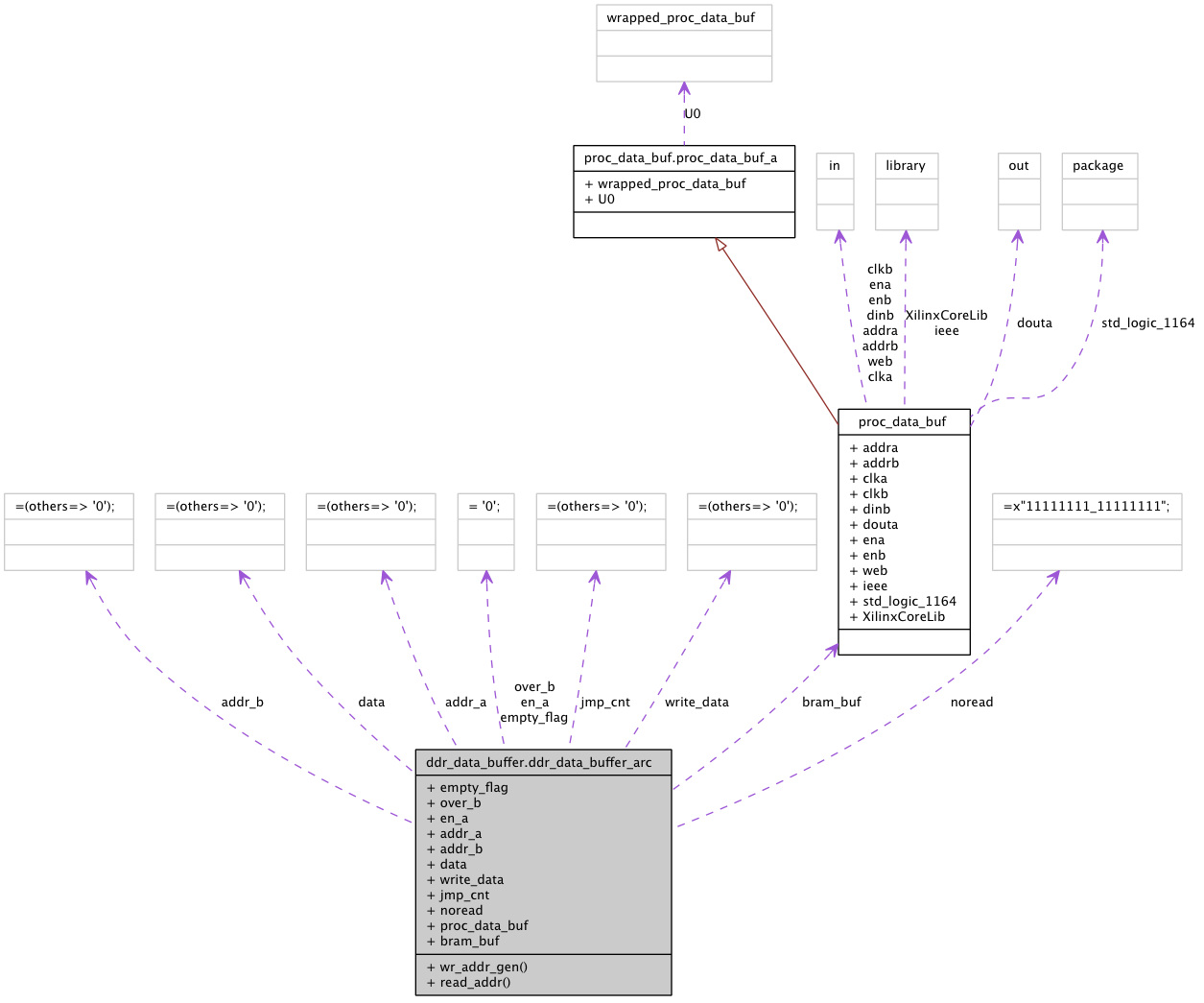

Collaboration diagram for ddr_data_buffer.ddr_data_buffer_arc:
Processes | |
| wr_addr_gen | ( CLK_B ) |
| Write address generation. | |
| read_addr | ( CLK_A ) |
| read address generation, steps over reserved fields | |
Components | |
| proc_data_buf | <Entity proc_data_buf> |
| wrapped DPBRAM | |
Constants | |
| noread | std_logic_vector ( 63 downto 0 ) := x " 11111111_11111111 " |
| filler for reserved fields | |
Signals | |
| empty_flag | std_logic := ' 0 ' |
| over_b | std_logic := ' 0 ' |
| en_a | std_logic := ' 0 ' |
| addr_a | std_logic_vector ( 8 downto 0 ) := ( others = > ' 0 ' ) |
| addr_b | std_logic_vector ( 6 downto 0 ) := ( others = > ' 0 ' ) |
| data | std_logic_vector ( 63 downto 0 ) := ( others = > ' 0 ' ) |
| write_data | std_logic_vector ( 255 downto 0 ) := ( others = > ' 0 ' ) |
| jmp_cnt | std_logic_vector ( 1 downto 0 ) := ( others = > ' 0 ' ) |
Component Instantiations | |
| bram_buf | proc_data_buf <Entity proc_data_buf> |
| DPBRAM buffer. | |
Detailed Description
interface between DAQ & DDRDefinition at line 55 of file ddr_data_buffer.vhd.
Member Function Documentation
| read_addr | ( clk_a ) |
read address generation, steps over reserved fields
Definition at line 129 of file ddr_data_buffer.vhd.
00129 read_addr : process(clk_a) 00130 begin 00131 if clk_a'event and clk_a = '1' then 00132 if RESET = '1' then 00133 addr_a <= (others => '0'); 00134 jmp_cnt <= (others => '0'); 00135 else 00136 if REN = '1' then 00137 if jmp_cnt = 2 then 00138 addr_a <= addr_a + 2; 00139 jmp_cnt <= (others => '0'); 00140 else 00141 jmp_cnt <= jmp_cnt + 1; 00142 addr_a <= addr_a + 1; 00143 end if; 00144 else 00145 addr_a <= addr_a; 00146 end if; 00147 end if; 00148 end if; 00149 end process read_addr;
| wr_addr_gen | ( clk_b ) |
Write address generation.
Definition at line 106 of file ddr_data_buffer.vhd.
00106 wr_addr_gen : process(clk_b) 00107 begin 00108 if clk_b'event and clk_b = '1' then 00109 if RESET = '1' then 00110 addr_b <= (others => '0'); 00111 over_b <= '0'; 00112 else 00113 if WEN = '1' then 00114 addr_b <= addr_b + 1; 00115 if addr_b = "1111110" then 00116 over_b <= '1'; 00117 end if; 00118 else 00119 addr_b <= addr_b; 00120 end if; 00121 end if; 00122 end if; 00123 end process wr_addr_gen;
Member Data Documentation
bram_buf proc_data_buf [Component Instantiation] |
noread std_logic_vector ( 63 downto 0 ) := x " 11111111_11111111 " [Constant] |
proc_data_buf [Component] |
The documentation for this class was generated from the following file:
